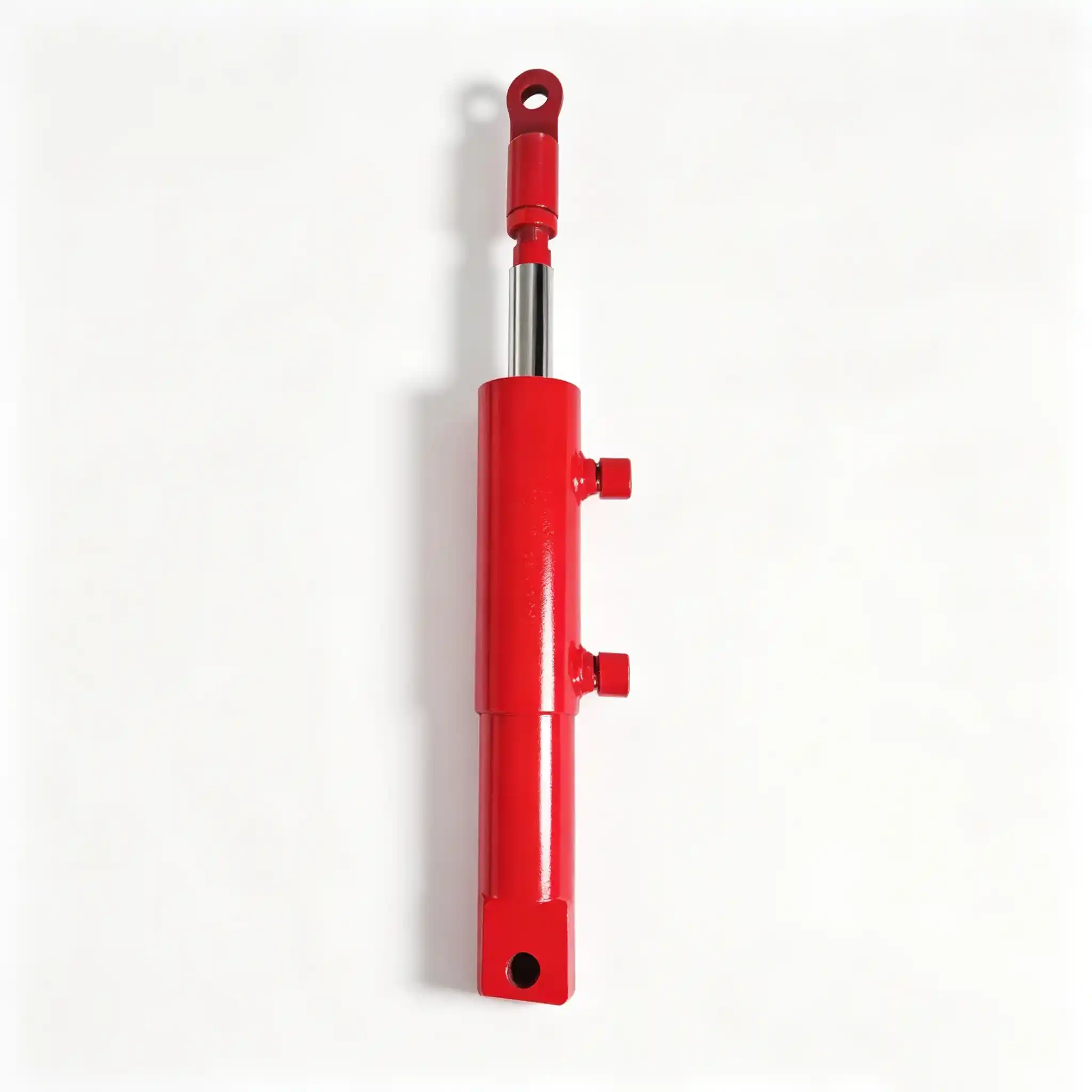

YS40F Variator Hydraulic Cylinder | Combine CVT Belt Control, 40mm Bore

Variator Hydraulic Cylinder for Combine Harvester: Function in the CVT Drivetrain

To understand why the YS40F exists as a specific, non-interchangeable part, it helps to understand what a combine variator does and why hydraulic actuation is used to control it. The CVT (continuously variable transmission) on a combine harvester uses a set of sheaves with movable faces — when the face spacing changes, the effective pitch diameter changes, altering the speed ratio transmitted to the threshing drum, cleaning shoe, or ground drive without a stepped gearbox change.

The hydraulic cylinder — the combine CVT hydraulic cylinder — is what moves that sheave face. At 40 mm bore and 22 mm rod, the YS40F generates moderate force (approximately 1,885 N push force at 150 bar) over a short, precise 65 mm travel distance. The narrow stroke is not a limitation; it is the design point. Belt drives in a combine CVT typically require only 40–70 mm of sheave face travel to traverse the full speed range from minimum to maximum ratio. A longer stroke would be mechanically redundant and would introduce positioning errors.

The 418 mm closed length is the characteristic that tends to define the platform compatibility of this cylinder. This long mounting distance relative to the short 65 mm stroke means the cylinder is operating near its mid-range, which is the most stable operating zone for seal and guide performance. It also means the cylinder fits within the sheave housing geometry of the machines this model targets without any bracket modification.

What makes the variator cylinder a more technically demanding product than a simple lift cylinder is the leakage requirement. Any internal leakage past the piston seal causes the sheave face to drift under belt tension load. Drift in a CVT translates directly to speed ratio change — the operator notices this as thresher speed creep or ground speed variation under constant throttle. For this reason, piston seal quality in a variator cylinder is not a commodity specification.

Combine CVT Hydraulic Cylinder Replacement: Technical Criteria and Common Failure Modes

Operators and service technicians replacing the variator cylinder on a combine need to verify more than just the bore-rod-stroke dimensions. Because the YS40F controls a dynamic mechanical system with real-time load feedback, several additional parameters matter:

• Piston Seal Quality and Internal Leakage Rate: The piston seal must maintain a static pressure hold without measurable leakage at system pressure. We specify an internal leakage rate of ≤ 3 cm³/min at rated pressure for this cylinder — a tighter specification than general-purpose agricultural cylinders because the application penalises any drift.
• Port Thread and Hose Compatibility: The YS40F uses metric or BSP port threads depending on machine variant. Verify thread standard before ordering — an incorrect thread standard is not field-repairable and will cause a costly return.
• Clevis and Pin Bore Dimensions: Replacement cylinders must match the pin bore and clevis width of the original. A loose pin fit in a variator application introduces positional play that is indistinguishable from piston seal leakage from the operator’s perspective — the machine exhibits CVT drift — but the root cause is mechanical, not hydraulic.
• Hydraulic Fluid Compatibility: Confirm seal compound compatibility with the hydraulic fluid in use. Combine hydraulic systems in some markets use HVI mineral oil; others use UTTO or biodegradable fluids. Seals designed for mineral oil will swell and fail prematurely in UTTO environments.

Common Failure Modes in Variator Cylinders

• Piston seal wear causing CVT drift: Most common failure. Manifests as gradual thresher speed reduction under load or inconsistent ground speed at fixed throttle. Confirmed by measuring speed ratio stability across a hold-pressure period.
• Rod wiper damage from chaff ingress: Causes progressive rod surface scoring and eventual primary seal failure. Preventable by periodic cleaning of the cylinder rod area during harvest.
• Mounting pin fretting: Occurs when pin bore tolerance has relaxed from vibration. Causes positional rattling before eventual bracket fatigue cracking.

Engineering Design: Why the 40/22 Bore-Rod Combination Is Used for CVT Control

The 22 mm rod in a 40 mm bore cylinder produces a rod-to-bore ratio of 55%. This is relatively slender compared to the header lift cylinders in the same combine’s hydraulic circuit. The design trade-off here is intentional: a slender rod produces a larger annulus area ratio, which means the pull force (retract) is a meaningfully smaller fraction of the push force (extend). In a variator application, this asymmetry is useful because belt tension does the retracting work — the hydraulic cylinder primarily works against belt tension on the extension stroke, and the belt spring-loads the retract stroke, meaning high retract force is not needed from the hydraulic system.

The 40 mm bore is sized to generate adequate sheave clamping force at the available hydraulic system pressure without over-pressurising the CVT mechanism. Over-clamping a belt drive sheave reduces belt life sharply — the cylinder force must be sufficient to prevent belt slip at maximum torque transmission, but not so high that it exceeds the belt’s lateral pre-load design limit.

The barrel bore surface finish for this cylinder is Ra ≤ 0.3 µm — finer than the general-purpose agricultural cylinder standard. This tighter surface finish supports the low-leakage piston seal specification by ensuring the seal contact surface is in the hydrodynamic lubrication regime at all times, including at the near-static velocities characteristic of variator positioning movements.

Stocking the YS40F: Supply Chain Considerations for Combine Parts Distributors

The variator cylinder is a high-demand replacement part during harvest season because it is small, relatively inexpensive, and its failure mode is not immediately catastrophic — machines can often limp through a short period with a drifting CVT before the cylinder is replaced. This makes pre-season stocking economically sensible for dealers serving combine operators: having the YS40F available at the start of harvest avoids the emergency sourcing scramble that characterises mid-harvest breakdowns.

The compact size of this cylinder (closed length 418 mm, weight approximately 1.8–2.2 kg) makes it cost-effective to air freight in small quantities when emergency supply is needed. Sea freight economics favour case-quantity stocking of 20–50 pcs per SKU for distributors operating in regions where combine harvest seasons are concentrated into a 4–8 week window.

We offer factory-direct supply with full dimensional and material certification documentation, suitable for distributor quality management system compliance. Cylinder identification marking (model, bore, stroke) is permanently stamped on the barrel for inventory traceability.
